Dynamic Thorax Phantom

Send Your Inquiry:

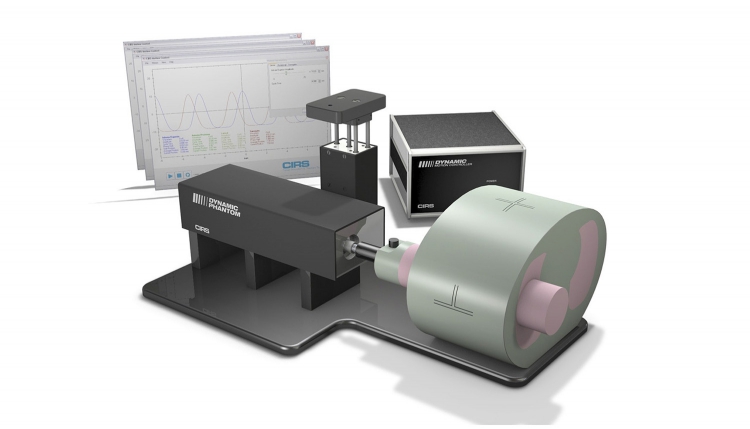

The CIRS Dynamic Thorax Phantom is a precision instrument for investigating and minimizing the impact of tumor motion inside the lung. It provides known, accurate and repeatable three-dimensional target motion inside a tissue equivalent phantom. It is designed for comprehensive analysis of image acquisition, planning and dose delivery in image-guided radiation therapy. The phantom body represents an average human thorax in shape, proportion and composition. A lung equivalent rod containing a spherical target and or various detectors is inserted into the lung equivalent lobe of the phantom. The body is connected to a motion actuator box that induces three-dimensional target motion through linear translation and rotation of the lung equivalent rod. Motion of the rod itself is radiographically invisible due to its matching density with the surrounding material. The target and its motion, given its density difference, can be resolved. Target and surrogate motion are independently controlled with CIRS Motion Control Software. The graphical user interface provides an unlimited variety of motions while simplifying the operation of the Dynamic Thorax Phantom to an intuitive level. Features; ? Complex 3D tumor motion within the lung ? Sub-millimeter accuracy and reproducibility ? Motion software enables different cycles, amplitudes and wave forms ? Tissue equivalent from 50 keV to 25 MeV ? Compatible with TLD, MOSFET, Dose Gel, micro-chamber, PET/CT targets and film ? Surrogate breathing platform accommodates numerous gating devices ? Graphical user interface simplifies operation of the Model 008A ? Instantly Start, Stop, Pause or Loop motion ? Adjust motion amplitude, cycle time and phase shift with pull ? downmenus and slider bars ? Real-time display of target and surrogate motion parameters

External Resources:

Product catalog

Manufacturer

CIRS

Manufacturer Country

USA
