MDSC-8358

Send Your Inquiry:

4K UHD surgical display

  • For perfect hand-eye coordination
  • Flexible multi-modality imaging
  • Exceptional image quality

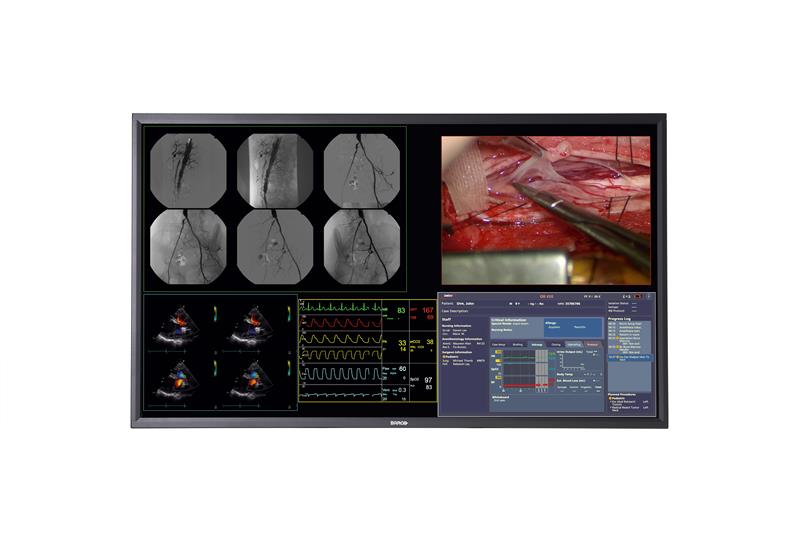

The MDSC-8358 is a slimline, large-screen surgical display with LED backlight, featuring a 58-inch LCD panel (16:9) with UHD resolution (3840 x 2160).

Perfect images in the surgical suite

The MDSC-8358 has been designed for use in hybrid operating rooms, interventional X-ray and cardiovascular suites. The MDSC-8358 delivers accurate DICOM-compliant grayscale and color images with ultra-low latency, consistent colors, and reduced noise, making it the preferred choice for real-time critical imaging.



All-around connectivity

Allowing DP, Dual Link DVI and Single Link DVI interfacing, Barco’s MDSC-8358 offers a host of connectivity options, making it compatible with a large variety of OR and interventional X-ray video systems.

Reliable and safe performance

The large-size, ultra high-resolution LCD screen offers a safer and more efficient alternative to multi-monitor configurations deployed in surgical environments. The optional configuration with a redundant power supply architecture (RL) ensures stable and reliable operation in the most critical conditions.

The failover function allows automatic switchover to back-up video signals to ensure smooth, real-time imaging in the OR and safeguard patient safety at all times.

Specifications

Screen technology a-si TFT active matrix
Active screen size (diagonal) 1473 mm (58.0″)
Active screen size (H x V) 1270.08 x 721.44 mm (50 x 28.4″)
Aspect ratio (H:V) 16:9
Resolution 8MP (3840 x 2160)
Pixel pitch 0.33075 mm (H) x 0.334 mm (V)
Color imaging Yes
Color support 16 million
Viewing angle (H, V) 178°
Maximum luminance 700 cd/m² (typical)
Contrast ratio 4000:1 (typical)
Response time 9.5 ms (typical)
Housing color Black
Video input signals DVI Dual link (Full screen image with 2 x DVI Inputs)
DVI Single Link (Full screen image with 4 x DVI inputs or 4 Quadrant Drive from 4 Indipendent sources)
DP 1.2 SST (Full Screen image; 4k native or 2k upscale)
Option: Nexxis MNA-240 Decoder (for uncompressed video-over-IP)
Option: 2 x Single Link DVI Dual Splitter for redistribution of auxiliary video input (see User Guide)
Special Features Failover: Signal from DVI inputs automatically displayed in case of absence of DP / Nexxis signals
Power requirements (nominal) 90 ÷ 264 Vac 50Hz/60Hz
Power consumption 400 W (maximum)
Power consumption 35 W (stand-by)
Power save mode Yes
Dot clock 260 MHz DVI dual link (preferred)
Dimensions (W x H x D) Version w/o front glass: 1318.5 x 776 x 145.8 mm
Version with front glass: 1326.5 x 778 x 153.7 mm
Dimensions packaged (W x H x D) 1540 x 413 x 940 mm
Net weight 45.5 – 57.5 kg (depending on version)
Net weight packaged 68.5 – 83 kg (depending on version)
Mounting standard VESA (400 mm)
Screen protection Protective, non-reflective glass cover, on specific versions (refer to User Guide)
Recommended modalities Endoscopy, Laparoscopy, PACS, PM, US, CT, MR
Certifications CE (Medical Device Class I);

EN60601-1(Ed.3) + A1:2013 +A12:2014; IEC60601-1(Ed.3) + A1:2012
ANSI/AAMI ES60601-1(Ed.3) + A1:2012; C1:2009/(R)2012 and A2:2010/(R)2012;
 CSACAN/CSA-C22.2NO.60601-1:14;

IEC/EN60601-1-2:2014; EN55011/CISPR11 (Class A)
Supplied accessories User Guide
Warranty 2 years
Operating temperature 10-35°C for performance / 0-40°C for safety
Storage temperature -20 ÷ +60°C
Operating humidity 10 ÷ 90% (non-condensing)
Storage humidity 10 ÷ 90% (non-condensing)
Operating altitude 3000m (maximum)
Storage altitude 12000m (maximum)
