TOR MAX

Send Your Inquiry:

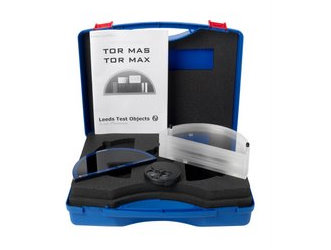

The kit consists of: A test object designed to be used quickly and easily on a routine basis to provide an ongoing check of imaging performance, particularly those aspects which are most liable to deterioration. An ongoing record of these numbers will reveal any trend towards deterioration in imaging performance. Enables the following checks to be made: ? Ten-step grey-scale plus two points for Sensitometric measurements. ? Resolution limit (1.0 to 20.0 LP/mm) x 2 ? Low-contrast large-detail detectability (12 details, 5.6mm diameter) ? High-contrast small-detail detectability (11 details, 0.5 and 0.25mm diameter) ? Irregular-shaped particles on a step-wedge background (median sizes 125, 225, 325 microns representing micro-calcifications). ? Low Contrast Resolution Pattern (1.8 to 5 line pairs/mm, representing filamentary structures).

External Resources:

Brochure

Manufacturer

Leeds Test Objects Ltd?

Manufacturer Country

England
