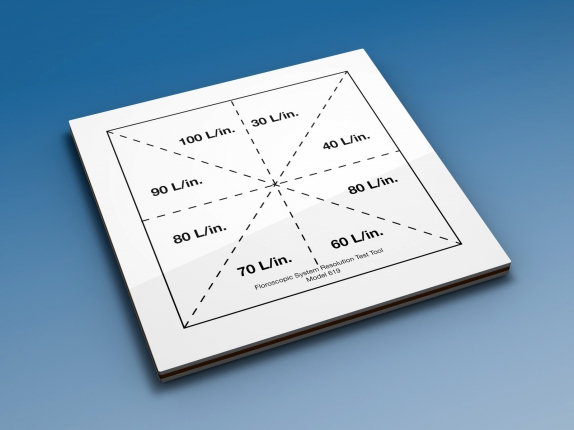

The Fluoroscopic Resolution Test Tool is a plastic plate containing eight groups of copper and mesh screening. Three models are offered, each with different resolutions for standard, medium and high resolution ranges covering 16 up to 150 line per inch (LPI). The screens are arranged in an irregular and nonsequential rotation to permit better visualization of the different resolution patterns. These test tools provide a quick check on image intensifiers or video system resolution.
