Mammography Research Set

Send Your Inquiry:

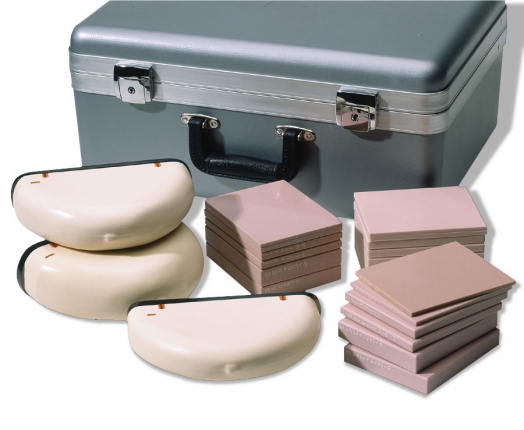

The CIRS mammography research set includes tissue equivalent phantoms 4, 5 and 6 cm thick. Each phantom contains identical embedded details (see map 011A). The glandular content of each phantom is 50%, 30%, and 20% respectively. Also included are phototimer compensation plates enabling a range of thickness from 0.5 cm to 7 cm with a glandular content of 30%, 50% and 70%. One compensation plate contains embedded details for evaluation of image quality. A 30 power hand held microscope and heavy duty foam lined carrying case are included. CIRS resin material mimics the photon attenuation coefficients of a range of breast tissues. Average elemental composition of the human breast being mimicked is based in the individual elemental composition of adipose and glandular tissue reported by Hammerstein. Attenuation coefficients are calculated by using the “mixture rule” and the Photon Mass Attenuation and Energy Absorption Coefficient Table of J.H. Hubbell.

External Resources:

Product catalog



Manufacturer Country


The content of the pages describing medical devices found in this website is intended solely for Healthcare professionals, not for general public.
