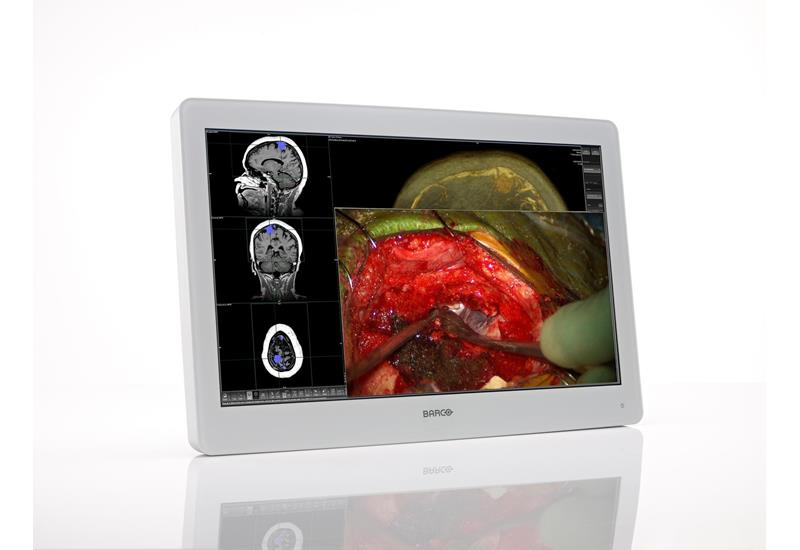

Full HD 24-inch surgical display

  • For the best hand-eye coordination
  • Allows for easy cleaning and disinfection
  • Works with Nexxis for video-over-IP integration

Barco’s MDSC-2324 is a 24-inch near-patient surgical display with LED backlight, featuring full HD resolution and a wide color gamut. Purpose-built for the operating room, the MDSC-2324 offers an easy-clean design, smart mechanics and the most detailed images in the procedure room today.

Color-calibrated, artifact-free images

Thanks to its high brightness, high contrast and high resolution, the MDSC-2324 presents surgeons with accurate, realistic images and excellent depth perception. It also offers the fastest, lag-free transmission of surgical images and the highest image quality available today.

Our next-generation motion adaptive de-interlacing and noise reduction algorithms, using full 10-bit image processing, are your guarantee for detailed, sharp, and noise-free pictures, so you can detect the most subtle changes in tissue color.

Multi-source, multi-display imaging over IP

With its broad input connectivity, the MDSC-2324 offers the highest flexibility for multi-modality imaging (PiP & PaP), enabling reproduction of images from multiple sources and to multiple displays in the integrated operating room.

The 24-inch display is one of Barco’s network-enabled surgical displays and offers integrated functionality (optional) for use with Nexxis digital OR, ensuring smooth distribution of uncompressed video and data over the IP network without delay.

Designed for use in the operating room

Barco’s MDSC-2324 allows easy cleaning and disinfection thanks to its smooth surface, splash-proof housing, and front screen protection (IP45). The fan-less design avoids the spread of contaminants.

The display comes with a smart cable management system that hides the cables for a clutter-free set-up. It is light and compact, allowing easy (dual-monitor) mounting on surgical booms and spring arms.


Barco’s MDSC-2324 features:

  • 24” wide-screen LCD
  • Full HD resolution
  • Wide viewing angle
  • High-brightness LED backlight
  • Advanced, full 10-bit, image processing algorithms for artifact-free video reproduction
  • Widest range of SD and HD input signals, including 3G-SDI and DisplayPort
  • Calibrated for perfect color and grayscale reproduction (ITU 709 and DICOM standards)
  • Easy cleaning thanks to full size protection screen and smooth design without gaps
  • Easy cable management allowing hiding of cables in a flexible back cover
  • Lightweight for easy mounting on spring arms


Screen technology TFT AM LCD
Active screen size (diagonal) 611 mm (24.1″)
Active screen size (H x V) 518 x 324 mm (20.4 x 12.7″)
Aspect ratio 16:10
Resolution W-UXGA (1920 x 1200)
Pixel pitch 0.270 mm
Color support 1073 million (10-bit)
Color gamut Wide gamut (Adobe RGB 1998)
Viewing angle 178° (panel typical)
Maximum luminance 400 cd/m² (panel typical)
Contrast ratio 1500:1 (panel typical)
Response time (Tr + Tf) 18 ms (typical)
Housing color White RAL 9003
Video inputs Video input signals:
-DVI-I Single-Link (Digital & Analog – HDMI video support with HDCP)
-Component Video RGBS / YPbPr (4xBNC)
-S-video (4-pin Mini DIN)
-Composite video (1xBNC)
-3G-SDI (1xBNC)
-DisplayPort (VESA std 1.1a)
-Optional: integrated BARCO Nexxis network adapter

Video input formats:
-VGA & DVI: Up to 1920×1200 at 60Hz (reduced blanking)
Maximum pixel clock: 165MHz
Maximum Hor freq: 90kHz
Maximum Ver freq: 75Hz
-Standard PAL and NTSC for S-Video, Composite and Component
-Component YPbPr/ RGBS: HDTV – up to 1080i & 1080p
-SDI Format Supported: 625/25 PAL, 525/29.97 NTSC, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, 720p60, 1080p50, 1080p59.94, 1080p60
-SDI Compliance: SMPTE 425M (Level A), SMPTE 424M, SMPTE 292M, SMPTE 259M-C, SMPTE 296M, ITU-R BT.656, ITU-R BT.601
-Displayport 1.1a: up to 1920 x 1200 60Hz

Video outputs DVI-D
S-video (4-pin Mini DIN)
Composite video (1xBNC)
3G-SDI (1xBNC)
Power requirements (nominal) Power source for external power supply: 100 – 250 VAC / 47-63 Hz auto-switch
Power source for display power input: +24 VDC / 2.3A (LED and DDI version), 3.2A (MNA version)
Power supply for external module: +5VDC ±10% @500mA (max) through the DVI connectors DVI-in & DVI-out (on pin 14 or pin 16 – OSD programmable)
Power consumption 55W max (LED and DDI version)
75W max (MNA version)
Power management DVI-DMPM states supported
Power On state
Active-Off state
Dot clock 165 MHz max (DVI)
Gamma curve Native, 1.8, 2.0, 2.2, 2.4, DICOM
OSD languages English, French, German, Spanish, Italian
Dimensions w/o stand (W x H x D) 595 x 414 x 84 mm (23,4” x 16,3” x 3,3”)
Dimensions power supply (W x H x D) 210 x 103 x 52 mm (8,27″ x 4,06″ x 2,05″)
Dimensions packaged (W x H x D) 712 x 605 x 178 mm (28,03″ x 23,82″ x 7,01″)
Net weight w/o stand 8.0 kg (17.6 lbs)
9.6 kg (21.2 lbs) including power supply and accessories
Net weight power supply 1.5 kg (3.31 lbs)
Net weight packaged w/o stand 12.5 kg (27.6 lbs)
Power supply DC output cable length 2.5 m (8.2 ft)
Mounting standard VESA (100 x 100 mm)
Screen protection Protective, non-reflective PMMA cover
Recommended modalities Endoscopy, Laparoscopy, PACS, PM, US, CT, MR
Certifications CE (Medical Device Class I)
EN 60601-1: 2006 + A1:2013 + A12:2014 (Medical Electrical Equipment – Part 1: General Requirements for Safety)
IEC 60601-1: 2012 Edition 3.1 (Medical Electrical Equipment – Part 1: General Requirements for Basic Safety and Essential Performance)
IEC 60601-1-6 (Ed. 3); Am1
ANSI/AAMI ES 60601-1:2005/(R)2012 and A1:2012, C1:2009/(R)2012 and A2:2010/(R)2012 (Medical Electrical Equipment – Part 1: General Requirements for Basic Safety and Essential Performance)
CAN/CSA-C22.2 No. 60601-1: 14 (Medical Electrical Equipment – Part 1: General Requirements for Basic Safety and Essential Performance (Harmonized with Ed. 3.1)
CCC: GB9254-2008 + GB4943.1-2011 + GB17625.1-2012
BIS (except for MNA version): IS13252 (PART1):2010 +A1:2013 +A2:2015
IEC 60601-1-2: 2014
EN 60601-1-2: 2015
EN 55011/CISPR11 (MNA version: Class A, LED and DDI version: Class B)
FCC CFR 47 Part 15 Subpart B (MNA version: Class A, LED and DDI version: Class B)
RoHS compliant
IP21 (IP45 front side only)
Supplied accessories 1x DVI-D video cable
1x printed User Guide (English)
1x documentation disc, containing all translations of the User Guide
1x external power supply
4 screws, 4 dented washers and an Allen key
Mains cables
Optional accessories Barco stand (K9302097A)
Power extension cable 10m (K3495066)
Power extension cable 30m (K3495068)
Warranty 3 years
Operating temperature 10 ~ 35°C for performance / 0 ~ 40°C for safety
Storage temperature -20 ~ +60°C
Operating humidity 10 ~ 90% (non-condensing)
Storage humidity 10 ~ 90% (non-condensing)
Operating altitude 3000 m max
Storage altitude 12000 m max
