MDSC-8231

Send Your Inquiry:

4K UHD surgical display

  • Perfect match for 4K endoscopy cameras
  • Shows images with astonishing detail
  • Medical-grade and smart design
  • BT.2020 compatible
  • 12G-SDI and Quad-link 3G-SDI signals accepted

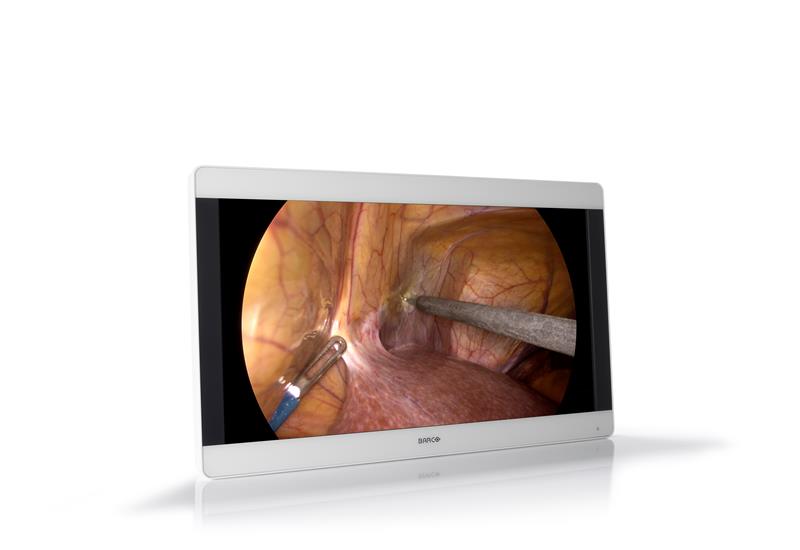

Barco’s MDSC-8231 is a 31-inch, near-patient, high-brightness surgical display that is purpose-built for 4K imaging in the digital operating room and interventional radiology control room. It offers an easy-to-clean design, light and smart mechanics, and the most life-like images today.

Ease of mind

Flawless 4K imaging
The perfect match for 4K endoscopy camera systems, the MDSC-8231 presents endoscopic images with a resolution four times that of HD. This provides surgeons with more detail-rich, color-correct images for a real-life presentation of the patient’s anatomy and excellent depth perception. Images are presented with unrivaled color accuracy (thanks to the wide color gamut and advanced color calibration), without artifacts, and with near-zero latency for optimal hand-eye coordination. The 31-inch display size makes the MDSC-8231 ideal for use in the interventional radiology control room as well.

Multi-source, multi-display imaging
With its broad input connectivity and wide set of image control features, the MDSC-8231 offers flexible multi-modality imaging in new integrated operating rooms. The 31-inch display also offers integrated functionality (optional) for use with Barco’s Nexxis for video-over-IP solutions.

Safety, stability and redundancy
Thanks to its high-bright LED backlight with light output stabilization, the display ensures a long lifetime and image consistency. The unique, automated failover feature guarantees a backup signal at all times to ensure safe surgery.

Ease of installation

The MDSC-8231 comes with a smart cable management system that hides the cables for a clutter-free set-up. Its lightweight design allows easy mounting on surgical booms and spring arms.

Ease of use

Barco’s MDSC-8231 allows for easy cleaning and disinfection thanks to its smooth surface and splash-proof housing (front protection level IP45). It comes with a highly durable, scratch-resistant front glass featuring excellent optical performance. The fanless design prevents the spread of contaminants.

Specifications

Screen technology TFT AM LCD / IPS-PRO technology / LED backlight
Active screen size (diagonal) 789 mm (31.1″)
Active screen size (H x V) 698 x 368 mm
Aspect ratio 17:9
Resolution 4K-2K (4096 x 2160)
Pixel pitch 0.1704 mm
Color support 1073 million (10-bit)
Color gamut Native: 96% DCI-P3 / 105% Adobe
Color calibration ITU-709, DCI-P3, BT.2020
Viewing angle 178° Hor / 178° Ver
Maximum luminance Max 550 cd/m² (typ.)

@6500K: 450 cd/m2 stabilized (typ.)

Contrast ratio 1400:1 (typ.)
Response time T on + T off (=rise + fall): 20 ms (typ.)
White point Calibrated: 5600K, 6500K, 7600K, 9300K
Gamma curve Native, 1.8, Video 2.2, 2.4, DICOM
Front protection screen Scratch-resistant 2-side AR alkali-aluminosilicate glass
Keyboard Capacitive 7-key touch keyboard
Video inputs MDSC-8231 LED
4K-UHD input selectable among:
1x DP 1.1 up to 4096 x 2160 @25Hz/30Hz
2x DP 1.1 up to 2048 x 2160 @50Hz/60Hz
1x DP 1.2 MST up to 4096 x 2160 @50Hz/60Hz
2x HDMI 2.0 up to 4096 x 2160 @50Hz/60Hz

FHD input (upscaled to UHD):
1x DVI
1x 3G-SDI

MDSC-8231 12G
4K-UHD input selectable among:
Quad-link 3G-SDI up to 4096 x 2160 @50Hz/60Hz
12G-SDI up to 4096 x 2160 @50Hz/60Hz
1x DP 1.1 up to 4096 x 2160 @25Hz/30Hz
2x DP 1.1 up to 2048 x 2160 @50Hz/60Hz
1x DP 1.2 MST up to 4096 x 2160 @50Hz/60Hz
2x HDMI 2.0 up to 4096 x 2160 @50Hz/60Hz
FHD input (upscaled to UHD):
1x DVI

MDSC-8231 MNA 4K-UHD input selectable among:
1x DP 1.1 up to 4096 x 2160 @25Hz/30Hz
2x DP 1.1 up to 2048 x 2160 @50Hz/60Hz
1x DP 1.2 MST up to 4096 x 2160 @50Hz/60Hz
2x Fiber Optic SFP+ for 4K-UHD Nexxis link
FHD input (upscaled to 4K)
1x DVI
1x 3G-SDI

Video outputs MDSC-8231 LED & MNA
1x 3G-SDI (input loop through)
1x DVI (screen clone downscaled to FHD)
MDSC-8231 12G
2x 12G-SDI (input loop through)
1x DVI (screen clone downscaled to FHD)
Multi-image support Picture-in Picture, Image Mirror and Rotation, Failover mode, Screen clone on DVI out, FHD input upscaled to UHD, Quadview (through Nexxis)
Remote control MDSC-8231 LED, MDSC-8231 12G: Usb Type B port for FW download & control protocol / remote control through DDC on DVI & DP
MDSC-8231 MNA: FW download through network connection
Features Video processing optimized for low latency and noise reduction, Picture-in-Picture, Picture-by-Picture, Image Mirror and Rotation, Failover mode, Screen clone on DVI out, FHD input upscaled to UHD, Legacy signals accepted, DC Power output, cable cover.
Power consumption MDSC-8231 LED: 165W (Max) / 24V ± 10%
MDSC-8231 12G, MDSC-8231 MNA: 190W (Max) / 24V ± 10%
Low power mode
MDSC-8255 LED: 18W Typ
MDSC-8255 12G: 33W Typ
MDSC-8255 MNA: 52W Typ
Power-off: ~ 1
External power supply AC input: 100 – 240 VAC / 47-63 Hz auto-switch
DC output: +24 VDC / 10 A
DC power output DC connector: +5V / 2A
Available also on DVI, DP and USB ports
Dimensions w/o stand (W x H x D) 777 x 472 x 93 mm / 30.6 x 18.6 x 3.6 in
Net weight w/o stand 12.1 Kg / 26.6 lbs (MDSC-8231 LED, MDSC-8231 12G)

12.7 Kg / 28.0 lbs (MDSC-8231 MNA)

Net weight packaged 17 Kg / 37.5 lbs (MDSC-8231 LED, MDSC-8231 12G)
17.5 Kg / 38.6 lbs (MDSC-8231 MNA)
Mounting standard 100×100 & 200×100 mm VESA
Temperature Operating: 0° ÷ 35° C
Storage: -20° ÷ 60° C
Humidity Operating: 10% ÷ 90% R.H.
Storage: 5% ÷ 90% R.H.
Regulation Compliance • ANSI/AAMI ES60601-1 (2005 + C1:09 + A2:10 + A1:2014
• CAN/CSA-C22.2 No. 60601-1 (2014)
• IEC 60601-1:2005 (Third Edition) + CORR. 1:2006 + CORR. 2:2007 + A1:2012
• EN 60601-1: 2006 + CORR:2010 + A1:2013 + A12:2014
• Electromagnetic Compatibility: EMC Medical EMC Standards: IEC 60601-1-2 (2014), EN 60601-1-2 (2015) EN55011 /CISPR 11, FCC CFR47 Part 15 Subpart B (Class B)
• GB17625.1-2012; GB4943.1-2011; GB/T9254-2008
• Approvals/Marking: CE, c-UL-us, DEMKO, CCC, INMETRO, EAC
Certifications IP20 (IP45 front side only)
Warranty 3 years
Green compliance ROHS-3, REACH, WEEE
