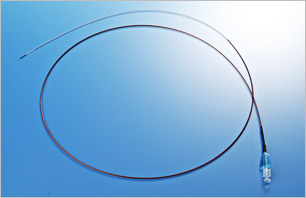

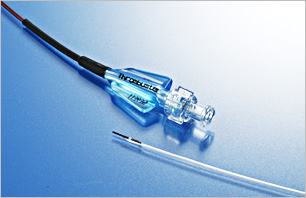

Thrombuster II 6Fr,7Fr
Improved Aspiration
Aspiration is improved by lowering flow resistance with “large” and “circular” aspiration lumen.
Improved Flexibility
The flexibility of the distal shaft was improved by shortening the wire lumen.
Smooth Insertion into Vessels
Smooth insertion into vessels is ensured because of the hydrophilic coating over the first 30 cm from the tip.
Added Kink Resistance
Push-ability and kink resistance are added by use of a removable core wire.
| Catalogue number |
Minimum inner diameter of compatible guiding catheter (inch/mm) | Maximum compatible guidewire (inch) | Shaft diameter, outer diameter (Fr)/inner diameter (mm) | Wire lumen (mm) | Effective length of shaft (mm) | ||
|---|---|---|---|---|---|---|---|
| Distal | Proximal | Maximum outer diameter | Length | ||||
| T2R6SA4W | 0.070/1.78 | 0.014 | 3.9/1.00 | 3.9/1.10 | 1.70 | 10 | 1400 |
| T2R6MD4W | 0.070/1.78 | 0.014 | 4.1/1.05 | 4.2/1.18 | 1.70 | 100 | 1400 |
| T2R7SA4W | 0.080/2.03 | 0.014 | 4.5/1.20 | 4.6/1.32 | 1.90 | 10 | 1400 |
| T2R7MA4W | 0.080/2.03 | 0.014 | 4.5/1.20 | 4.6/1.32 | 1.90 | 100 | 1400 |
