TOR DEN digital

Send Your Inquiry:

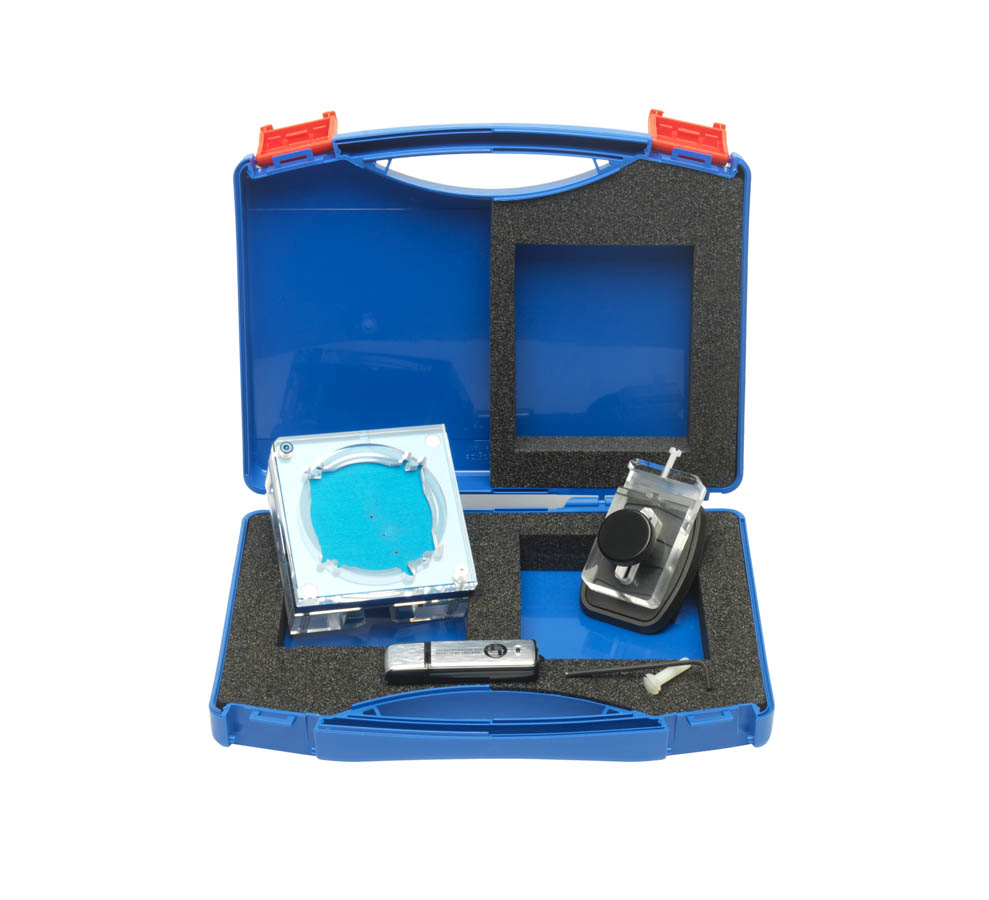

Leeds Test Objects¡¯ TOR DEN Digital phantom is designed to be used to check the image quality performance of digital dental x-ray systems including intra-oral, panoramic and cephalometric units. These tests should be carried out at acceptance to establish a baseline, and on a routine basis, keeping an on-going record of the test results, which will indicate any deterioration in performance. TOR DEN digital is used for units with digital image acquisition. It has been designed in accordance with standards IEC 61223-3-4 and IEC 61223-2-7 and enables the following tests to be made: ¡¤ Limiting Spatial Resolution ¡¤ Low Contrast Resolution ¡¤ Image Receptor Dose ¡¤ Radiation Field Alignment ~ for Panoramic and Cephalometric tests only ¡¤ Image Quality Homogeneity ~ for Panoramic and Cephalometric tests only The phantom is supplied with a positioning device, for TOR DEN digital this is a tripod fitted with an alignment jig. The TOR DEN phantoms are supplied in a tough case with a bespoke foam insert.
